Green area use case

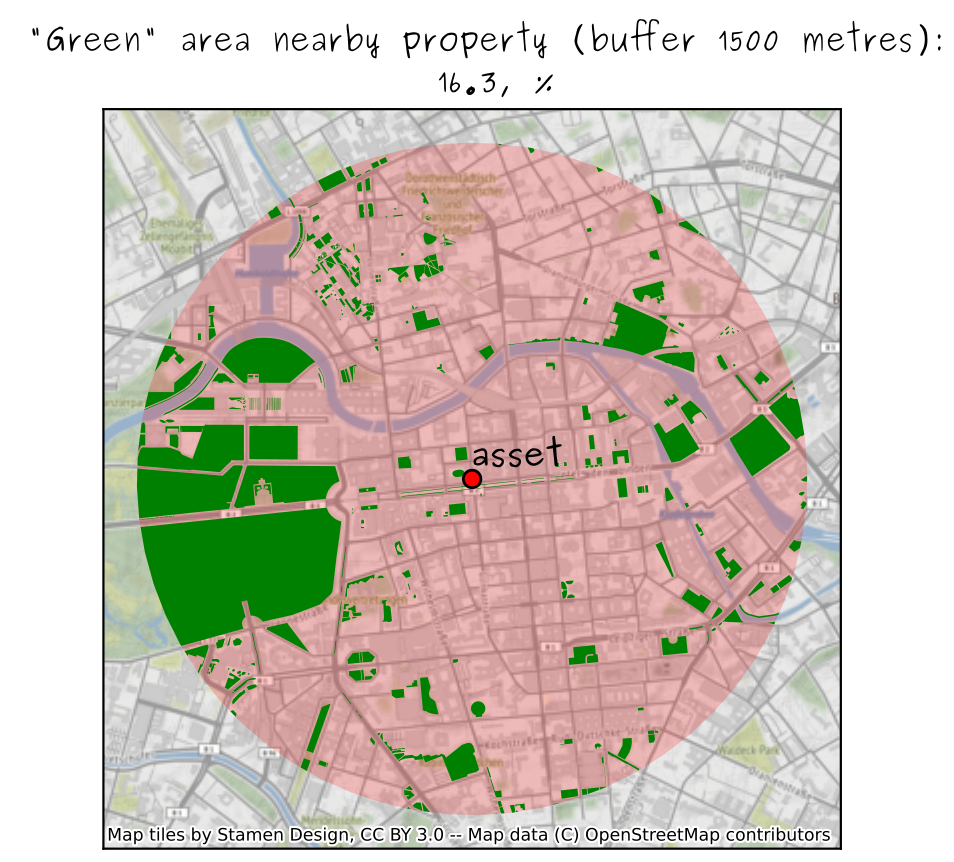

In this section scripts for "Green area calculation" use case are prepared. Grean area (or greendex) is an estimation of how green the area around a property is.

Calculation description

To obtain the green area value, two important components need to be calculated:

• A: Area of the zone of interest (defined by the radius)
• B: Area of green spaces

Then: Green area percentage = (B / A) x 100

Scripts

Three scripts have been prepared for this use case in cases folder:

• simple_with_osm_only.py - simplified version of the calculations. Only OpenStreetMap data is used to obtain geometries of green areas
• advanced_with_landsat.py - advanced version of the calculations. In addition to OpenStreetMap data Landast NDVI images is used to obtain geometries of green areas

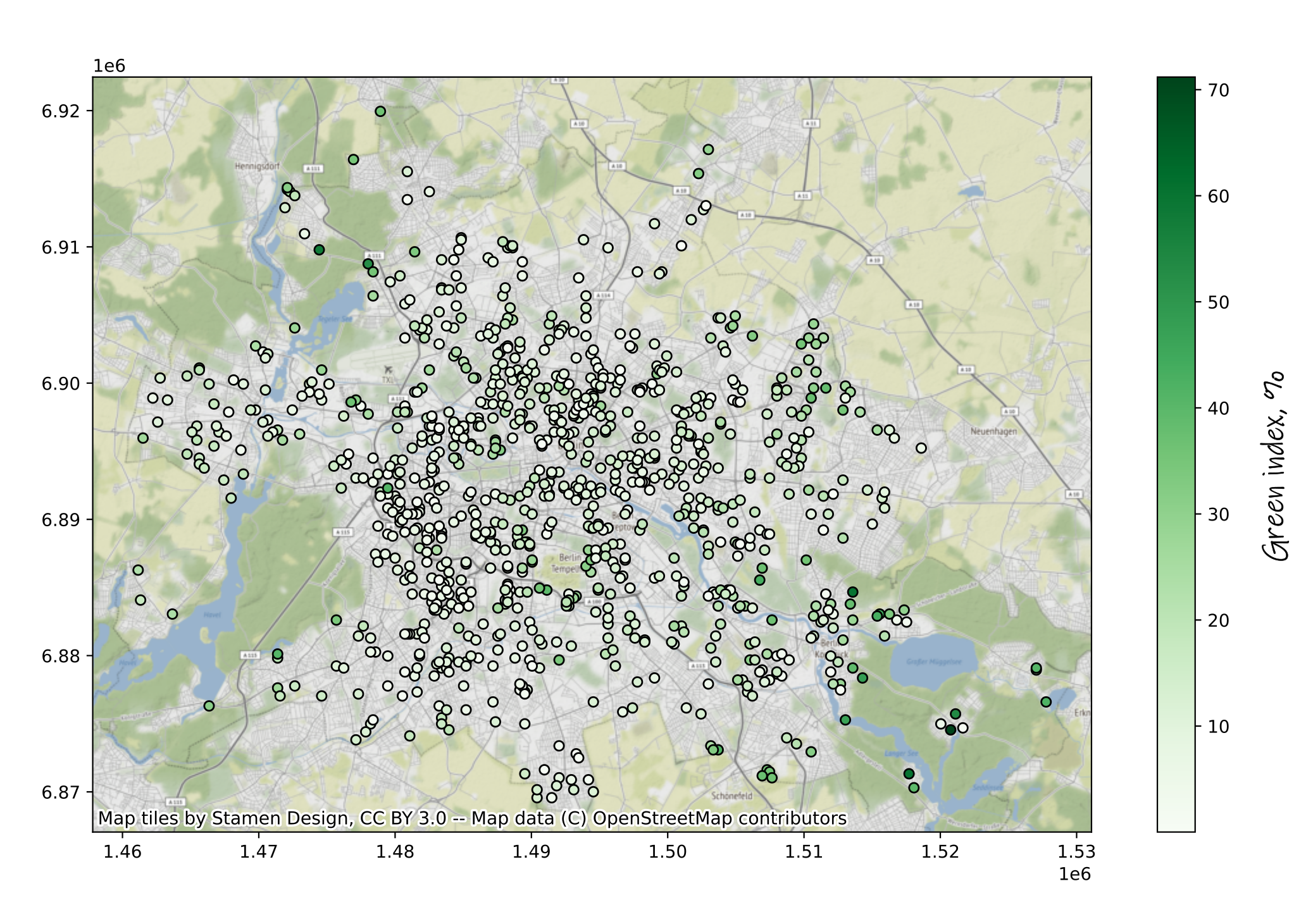

• benchmark.py - launch simple version of the calculations for several locations to obtain scale. Results of benchmark script can be visualized as follows:

Related materials

• Combining Open Street Map and Landsat open data to verify areas of green zones (eng)
• Объединение открытых данных Open Street Map и Landsat для уточнения площадей зеленых зон (rus)
